Description

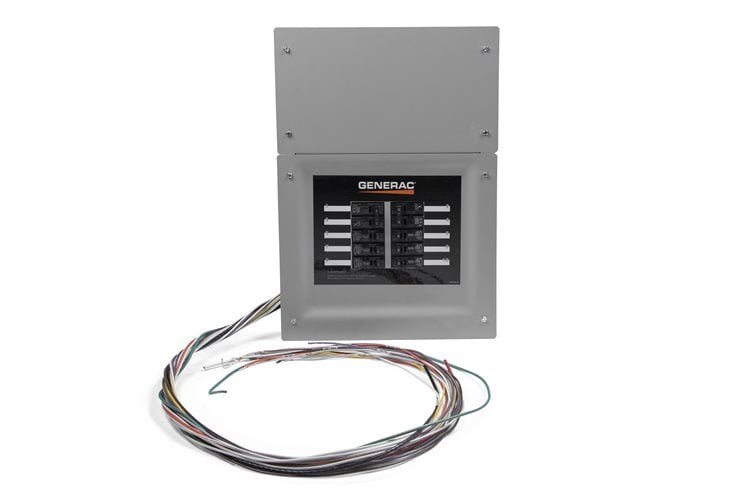

Generac 50 Amp Prewired Load Center Automatic Transfer Switch – 10 Circuit, Single Phase

The Generac 50 Amp Prewired Load Center Automatic Transfer Switch – 10 Circuit is a dependable solution for powering only the most critical circuits during an outage. Designed to work seamlessly with 8–24 kW Generac air-cooled standby generators, this single-phase, 120/240V switch automatically transfers your selected loads from utility power to generator power in seconds.

Housed in a rugged NEMA 1 steel enclosure with a baked powder coat finish, the switch includes a factory-installed 2-foot prewired whip for quick connection to your main distribution panel. The integrated load center accommodates 240V, 30A and 20A circuits, as well as multiple 120V, 15A circuits, providing flexible load coverage options.

The switch is multi-listed for compatibility with standard, tandem, GFCI, and AFCI breakers from Siemens, Murray, Eaton, and Square D, making installation more versatile and cost-effective. Controlled entirely by the generator’s onboard controller, it offers adjustable generator start delays, warmup, retransfer, cooldown, and exercise functions. Manual operation is also possible without applied power, ensuring flexibility in any situation.

Key Features

• 50 Amp, single-phase transfer switch with 10 integrated circuits

• Ideal for essential circuit coverage when main service is large

• Compatible with 8–24 kW Generac air-cooled generators

• Voltage: 120/240V, 60Hz

• Rugged NEMA 1 indoor-rated steel enclosure

• Prewired whip for simplified installation

• Compatible with Siemens, Murray, Eaton, and Square D breakers

• Adjustable start delay (2–1500 seconds)

• Manual operation without applied power

• ETL Listed for optional standby systems (NEC 702)

• Open transition design for safe load transfer
