22Kw Standby Generator With Whole House Switch | G007043

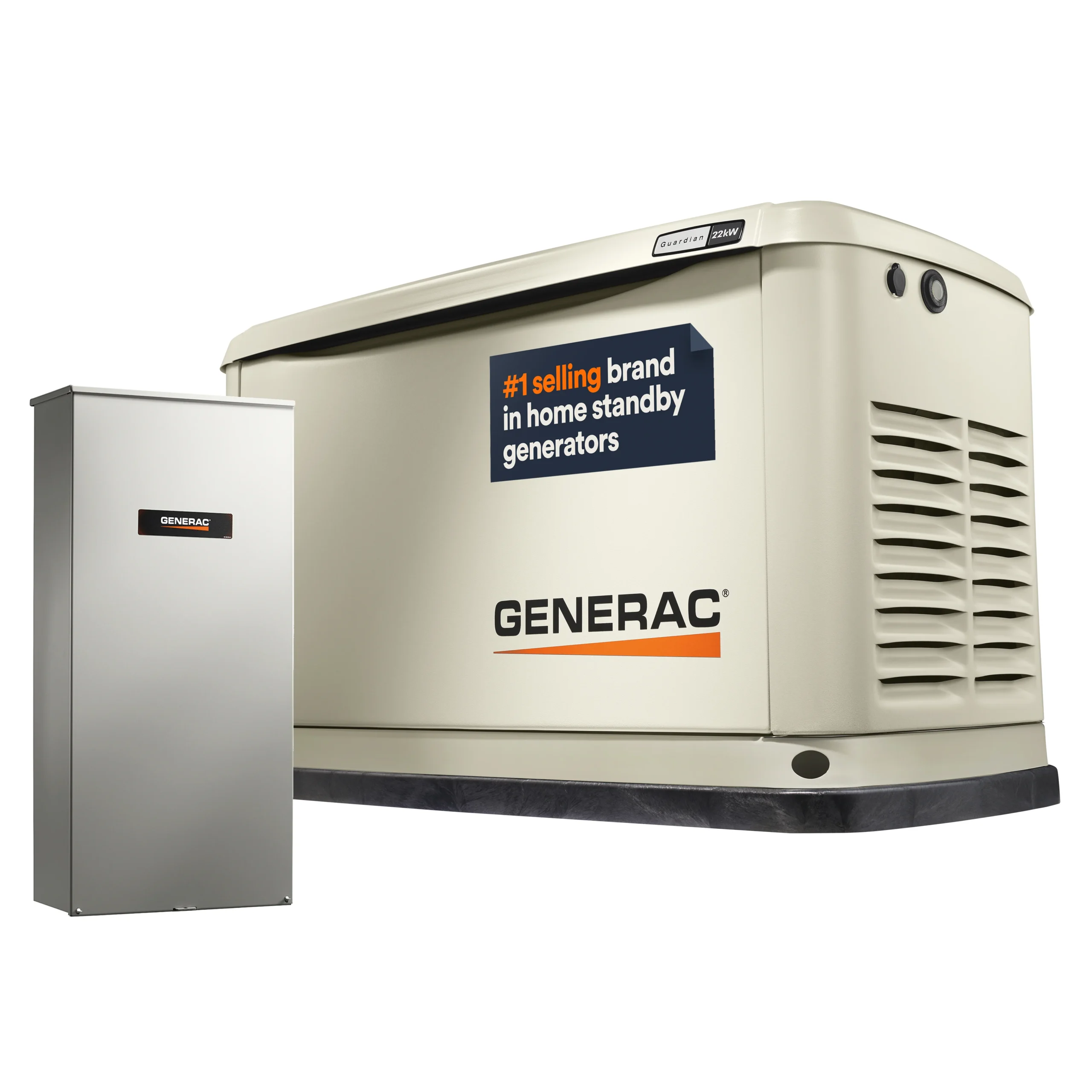

22kW Standby Generator With Whole House Switch | G007043

One of the most powerful air-cooled generators on the market today, the Guardian® Series 22 kW automatic home standby generator can provide whole-house backup power for many homes. Not only does it deliver all the features and functionality customers have come to expect from the market-leading brand of home standby generators, but with an MSRP that is the lowest cost per kilowatt of any air-cooled home standby generator.

Mobile Link™ Remote Monitoring FREE with every Guardian Series Home standby generator allows you to monitor the status of your generator from anywhere in the world using a smartphone, tablet, or PC. Easily access information, such as the current operating status and maintenance alerts. Up to whole house protection with the 200-amp, NEMA 3R (aluminum outdoor enclosure) smart switch.

$6,839.00

SKU G007043 Categories , , Tags , , , , Brand:

Description

Generac 22kW Standby Generator – Model 7043

Keep your home powered and protected during outages with the Generac Guardian 22kW standby generator. Designed for reliable whole-house coverage, it includes a 200-amp smart transfer switch, built-in WiFi, and smart load management for up to four A/C units.

  • 22kW LPG / 19.5kW NG Output: Powerful backup for whole-home coverage.
  • Smart Load Management: DPM technology supports up to 4 A/C units (24V controlled).
  • WiFi Monitoring: Mobile Link™ lets you check generator status remotely via smartphone or PC.
  • 200-Amp Service Entrance Rated Transfer Switch: Faster, cleaner installation between meter and panel.
  • True Power™ Technology: <5% THD for safe operation of sensitive electronics.
  • G-Force Engine: Pressure-lubricated, low-maintenance engine built for long-term use.
  • Quiet-Test™ Self-Test Mode: Weekly low-RPM test reduces noise and fuel use.
  • RhinoCoat™ Aluminum Enclosure: All-weather protection with corrosion resistance.
  • Evolution™ Controller: 2-line LCD, multilingual interface, programmable self-test scheduling.
  • Flexible Install: NFPA certified for placement as close as 18” from your home.*

*Always follow local code requirements.

Product Specifications

Power Output (LPG): 22,000 Watts
Power Output (NG): 19,500 Watts
Model Number: 7043
Fuel Type: Natural Gas / LP
Enclosure: All-Aluminum with RhinoCoat™
Transfer Switch: 200-Amp Smart Switch (Service Disconnect)
Engine: Generac OHVI 999cc, 3600 RPM
WiFi Monitoring: Yes – Mobile Link™
Voltage: 120/240 Single-Phase
Fuel Consumption @ 50% Load (NG): 203 ft³/hr
Fuel Consumption @ 100% Load (NG): 306 ft³/hr
Fuel Consumption @ 50% Load (LP): 2.53 gal/hr
Fuel Consumption @ 100% Load (LP): 3.9 gal/hr
Noise Level: 67 dB(A) @ 7m
Mounting Pad: Composite (Included)
Warranty: 5-Year Limited (Residential & Commercial)
Dimensions: 48″ L x 25″ W x 29″ H
Weight: 466 lbs
Certifications: UL Listed, NFPA 18″ Clearance

Additional information

Weight 466 lbs
Dimensions 48 × 25 × 29 in
Phase

Single Phase
Power Output

22kW
Engine

G-Force 1000 (999cc V-Twin)
Monitoring

Mobile Link
Transfer Switch

Included – RXSW200A3 (200A SE, NEMA 3R)
